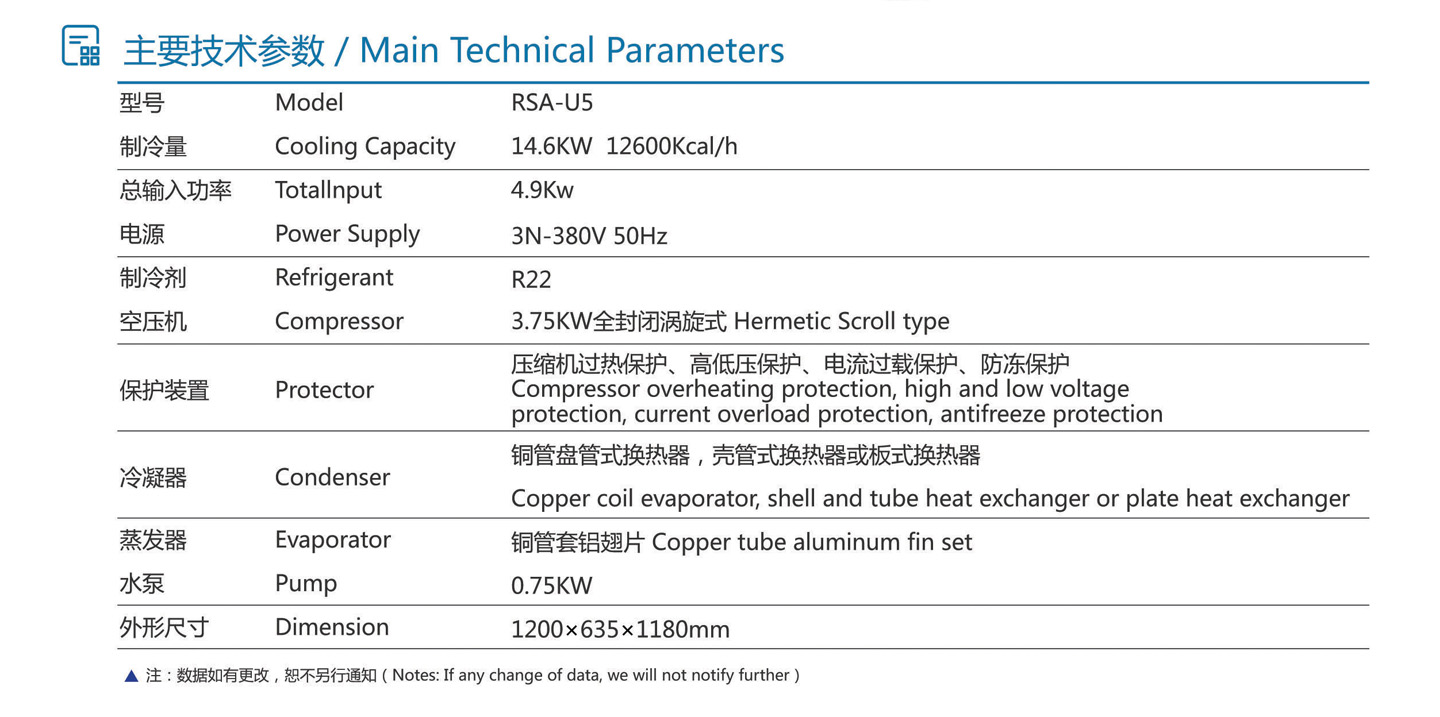

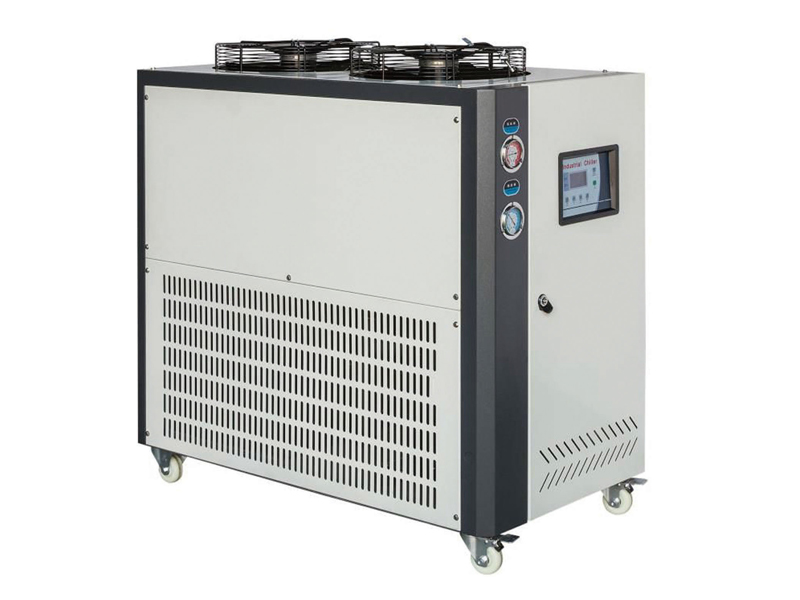

主要技术参数/ Main Technical Parameters
|
型号
|
Model
|
RSA-U5
|
|
制冷量
|
Cooling Capacity
|
14.6KW 12600Kcal/h
|
|
总输入功率
|
Totallnput
|
4.9Kw
|
|
电源
|
Power Supply
|
3N-380V 50Hz
|
|
制冷剂
|
Refrigerant
|
R22
|
|
空压机
|
Compressor
|
3.75KW全封闭涡旋式 Hermetic Scroll type
|
|
|
|
压缩机过热保护、高低压保护、电流过载保护、防冻保护
|
|
保护装置
|
Protector
|
Compressor overheating protection, high and low voltage.
|
|
|
|
protection, current overload protection, antifreeze protection
|
|
冷凝器
|
Condenser
|
铜管盘管式换热器 ，壳管式换热器或板式换热器
|
|
|
|
Copper coil evaporator, shell and tube heat exchanger or plate heat exchanger
|
|
蒸发器
|
Evaporator
|
铜管套铝翅片 Copper tube aluminum fin set
|
|
水泵
|
Pump
|
0.75KW
|
|
外形尺寸
|
Dimension
|
1200×635×1180mm
|
注:数据如有更改,恕不另行通知( Notes: If any change of data, we will not notify further)
