DH120自动点杯机

  • 所属分类:点杯机
  • 浏览次数:414次
  • 发布日期:2026/5/11 10:32:56
  • 产品描述
  • 产品参数

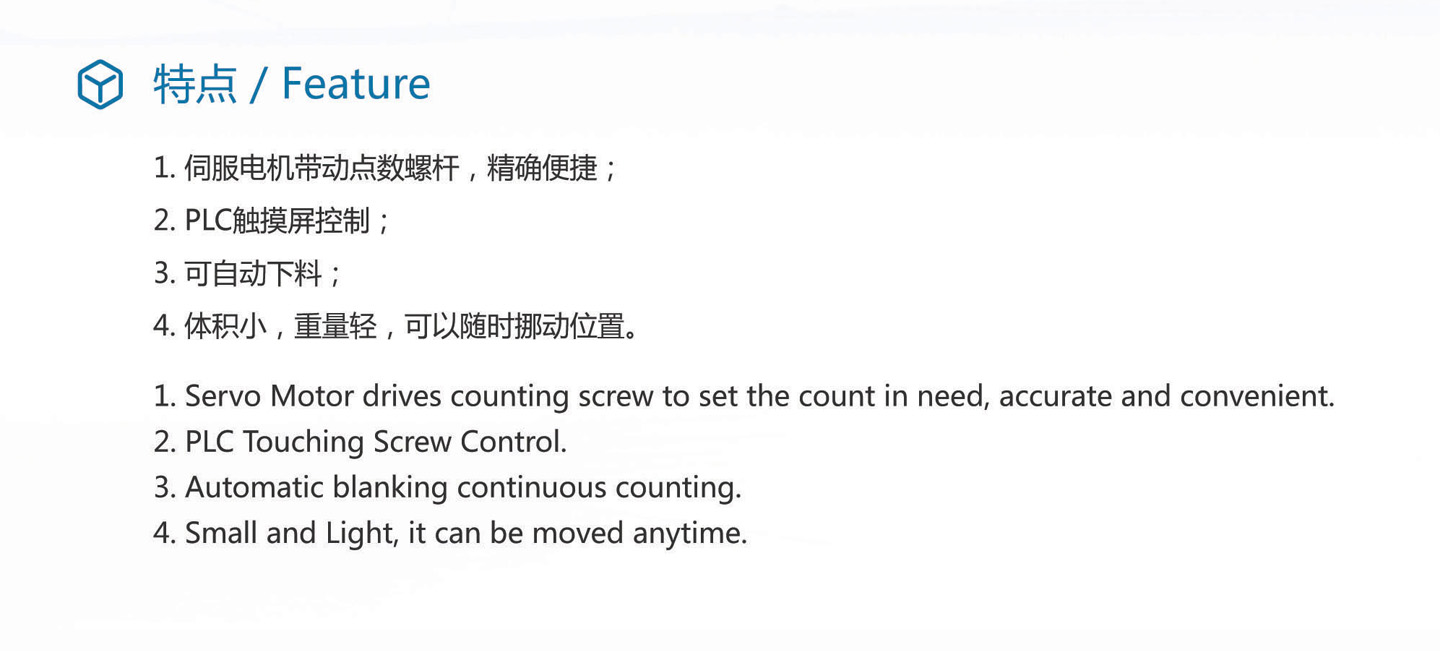

特点/ Feature


1.伺服电机带动点数螺杆,精确便捷;

2. PLC触摸屏控制;

3.可自动下料;

4.体积小,重量轻,可以随时挪动位置。

1. Servo Motor drives counting screw to set the count in need, accurate and convenient.

2. PLC Touching Screw Control.

3. Automatic blanking continuous counting.

4. Small and Light, it can be moved anytime.


特点 :
1. 伺服电机带动点数螺杆,精确便捷;
2. PLC触摸屏控制;
3. 可自动下料;

4. 体积小,重量轻,可以随时挪动位置

主要技术参数/ Main Technical Parameters

型号

Model

DH120

最快点杯速度

Max. Speed

22 pcs/ sec.

伺服电机

Servo Motor

0.2Kw

输送电机

Feeding Motor

0.9Kw

气压

Air Pressure

0.6Mpa

电源

Power

220V/50Hz

机器尺寸

Overall Size

2900×1000×1300mm

重量

Weight

100Kg

:数据如有更改,怨不另行通知( Notes: If any change of data, we will not notify further)
