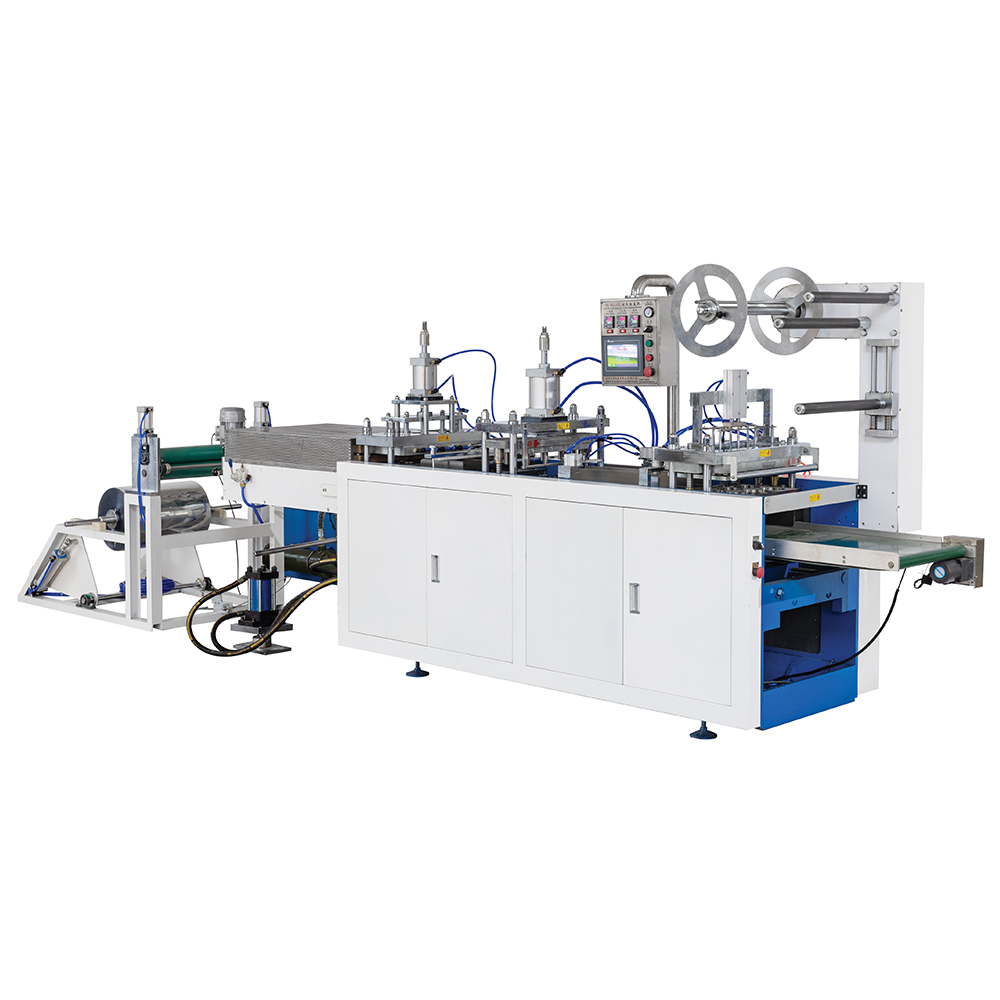

DHBGJ-450L双排液压杯盖机

  • 所属分类:杯盖机
  • 浏览次数:335次
  • 发布日期:2026/5/11 10:13:38
  • 产品描述
  • 产品参数

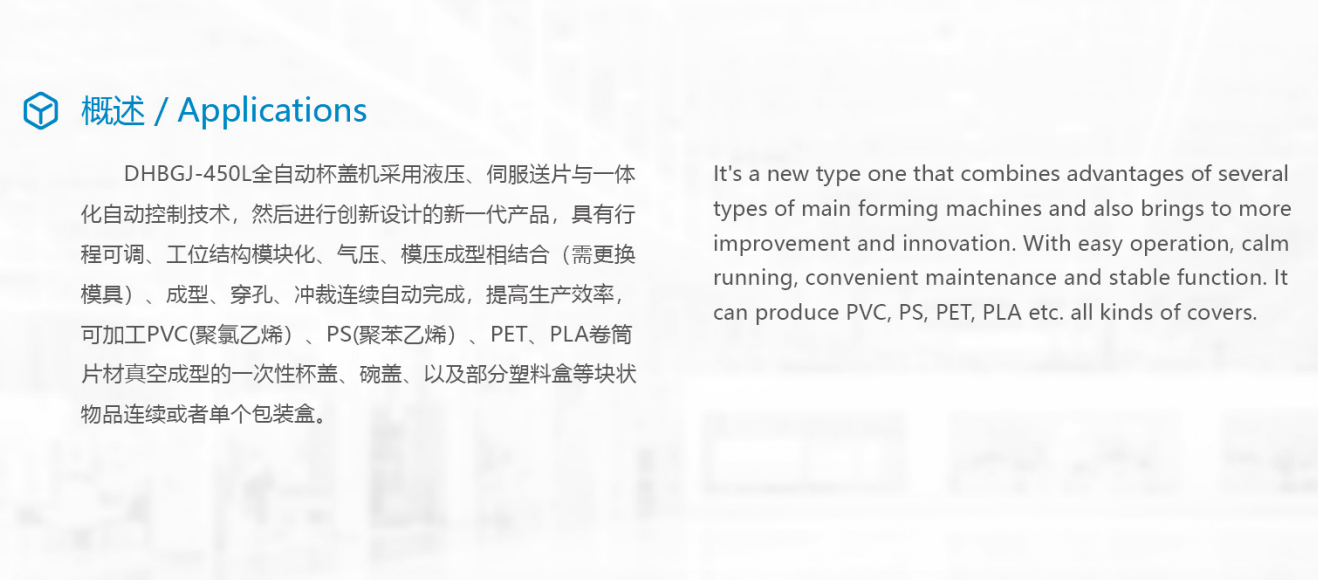

概述

DHBGJ-450L 全自动杯盖机采用液压、伺服送片与一体化自动控制技术,然后进行创新设计的新一代产品,具有行程可调、工位结构模块化、气压、模压成型相结合(需更换模具)、成型、穿孔、冲裁连续自动完成,提高生产效率,可加工 PVC (聚氯乙烯)、PS (聚苯乙烯)、PET、PLA 卷筒片材真空成型的一次性杯盖、碗盖、以及部分塑料盒等块状物品连续或者单个包装盒。


Applications
It‘s a new type one that combines advantages of several types of main forming machines and also brings to more improvement and innovation. With easy operation, calm running, convenient maintenance and stable function. It can produce PVC, PS, PET, PLA etc. all kinds of covers.

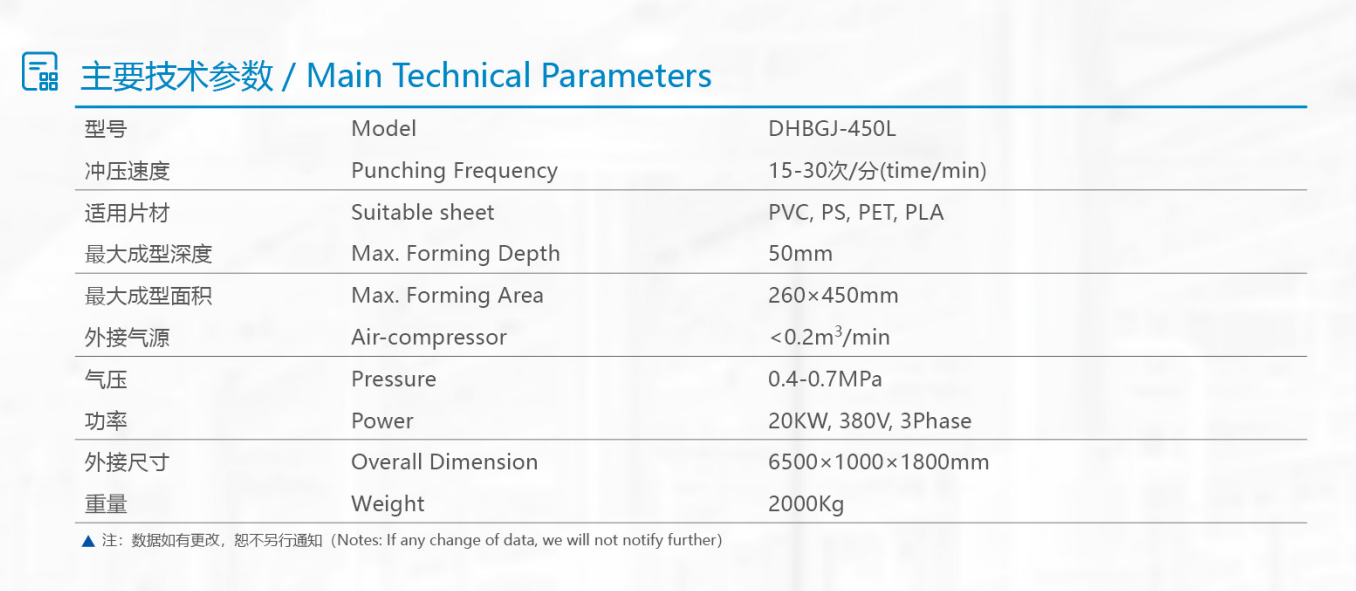

主要技术参数/Main Technical Parameters
型号 Model DHBGJ-450L
冲压速度 Punching Frequency 15-30 次 / 分 (time/min)
适用片材 Suitable sheet PVC, PS, PET, PLA
最大成型深度 Max. Forming Depth 50mm
最大成型面积 Max. Forming Area 260×450mm
外接气源 Air-compressor <0.2m³/min
气压 Pressure 0.4-0.7MPa
功率 Power 20KW, 380V, 3Phase
外接尺寸 Overall Dimension 6500×1000×1800mm
重量 Weight 2000Kg
注:数据如有更改,恕不另行通知(Notes: If any change of data, we will not notify further)
